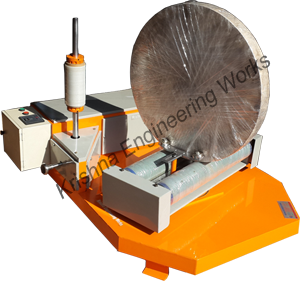

roll wrapping machine

Krishna Engineering Works offers comprehensive Roll Wrapping Machine, Roll Stretch Wrapping Machine. 220 V, single phase, 15 Amps, & 1.5 KW power supply, Our Roll Wrapping machine is built with International Standards and highly suitable for most of the industries exporting their goods. It is easy to operate, maintain and user friendly also sturdy for heavy duty use. Heavy duty and International standard of Wrapping machine, Carton Box Stretch Wrapping Machine, Coil Wrapping Machine, Stretch Film Wrapping Machine, Door Wrapping Machine, Water Tank Wrapping Machine Pallet Wrapping Machinemanufacturer, exporter and supplier. Also, Film Slitter Rewinder Machine manufacturer

Roll Wrapping Machine

STANDARAD FEATURES

• Highly economical and huge savings over shrink packing/gunny bundles
• Suitable for packing any rolls of Denim Cloth, Curtain Cloth, Carpets, Foam sheets, Upholsteries, Fabrics, Film, Paper etc.
• Occupies less space
• High productivity 30 – 50 rolls/hour
• Tremendous savings in labour, time and money
• Highly durable dust and moisture proof packing
• Powered Pre-Stretch unit to minimize film consumption
• Variable stretch percentage up to 300%
• Adjustable traverse to suit different roll width
• Controlled film tension
• Variable Overlap, Variable End Reinforcements, Variable Stretch Percentage and Variable Roller Speed
• Digital counters for end reinforcement wrap setting, film consumption and stretch percentage display
• Simple to operate, sturdy & safety control panel
• Cradle for easy loading of film
• Easy loading and unloading of Fabric roll and ease of integration into conveyor lines
• High energy saving-more than 90% saving over shrink wrapping
• Minimum service points
• Payback period is only few months
• Excellent after-sales-service support
• 12 months warranty

TECHNICAL SPECIFICATION

CAPACITY
Pallets/Hour
15-30 pallets/hour
Pallet Size
1150 x 1150 (44″ x 44″)
Pallet Height
2500 mm (100″)
Weight / Pallet
2000 Kg



Machine
Height (above GL)
350 mm
Speed
50 meters/minute
Maximum stretch
300%
Installed power
1.5 kW
Power supply
220V, Single phase, 50Hz



Film Details
Material
LLDPE – Stretch Film
Film width
250 to 500 mm
Film thickness
12-35 µ (23µ recommended)
Core diameter
76 mm
Maximum film diameter
250 mm
Max. weight of film roll
15 kgs
