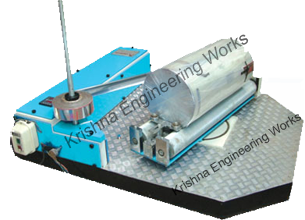

Mini Roll Wrapping Machine

Krishna Engineering Works is a leading manufacturer, exporter, and supplier of mini roll wrapping machine from India. It has been specially built for robust and easy to operate features with high quality equipments. Also, engineered for hard work in rugged environments with low maintenance requirements. It has been specially designed for packing products like Retread Rubber, Paper rolls, foils, film roll and many more. Mini roll stretch wrapping machine with speed of 0-12rmp and featuring with Weight: 400kgs and automatically system can wrap different size. We are also leading manufacturer of Rubber Rollers and Rubber Fillet for Wrap Machine.

Mini Roll Wrapping Machine

STANDARAD FEATURES

  1. Fully Automatic Machine.
  2. Heavy duty turn table for all industrial applications.
  3. Sturdy mast and machined guide ways for guiding the stretch unit.
  4. Compact stretch unit with change gears to vary stretch percentage.
  5. Suitable for a wide range of stretch film material.
  6. Modular in construction

TECHNICAL SPECIFICATION

CAPACITY
Pallets/Hour
15-30 pallets/hour
Pallet Size
1150 x 1150 (44″ x 44″)
Pallet Height
2500 mm (100″)
Weight / Pallet
2000 Kg



Machine
Height (above GL)
350 mm
Speed
50 meters/minute
Maximum stretch
300%
Installed power
1.5 kW
Power supply
220V, Single phase, 50Hz



Film Details
Material
LLDPE – Stretch Film
Film width
250 to 500 mm
Film thickness
12-35 µ (23µ recommended)
Core diameter
76 mm
Maximum film diameter
250 mm
Max. weight of film roll
15 kgs
