Krishna Engineering Works offers comprehensive Heavy Duty Roll Wrapping Machine with excellent quality to meet International Standard. It has designed for heavy duty and despite the tough process and longer durability. It’s generally used for yarns, carton boxes, polyester yarns, casting and many more for heavy duty roll wrapping, Jumbo Roll Wrapping Machine. We have been manufacturing, exporting and supplying Heavy Duty Roll Wrapping Machine from last 25 years. We also manufacturer of Slitter Rewinder Machine, Winding Rewinding, Doctoring Rewinding and more machines for the flexible packaging industries.

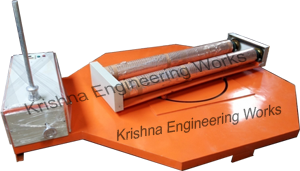

Heavy Duty Roll Wrapping Machine
STANDARAD FEATURES
• Highly economical and huge savings over shrink packing/gunny bundles
• Suitable for packing any rolls of Denim Cloth, Curtain Cloth, Carpets, Foam sheets, Upholsteries, Fabrics, Film, Paper etc.
• Occupies less space
• High productivity 30 – 50 rolls/hour
• Tremendous savings in labour, time and money
• Highly durable dust and moisture proof packing
• Powered Pre-Stretch unit to minimize film consumption
• Variable stretch percentage up to 300%
• Adjustable traverse to suit different roll width
• Controlled film tension
• Variable Overlap, Variable End Reinforcements, Variable Stretch Percentage and Variable Roller Speed
• Digital counters for end reinforcement wrap setting, film consumption and stretch percentage display
• Simple to operate, sturdy & safety control panel
• Cradle for easy loading of film
• Easy loading and unloading of Fabric roll and ease of integration into conveyor lines
• High energy saving-more than 90% saving over shrink wrapping
• Minimum service points
• Payback period is only few months
• Excellent after-sales-service support
• 12 months warranty
TECHNICAL SPECIFICATION
CAPACITY |
|
|
Pallets/Hour
|
15-30 pallets/hour
|
|
Pallet Size
|
1150 x 1150 (44″ x 44″)
|
|
Pallet Height
|
2500 mm (100″)
|
|
Weight / Pallet
|
2000 Kg
|
Machine |
|
|
Height (above GL)
|
350 mm
|
|
Speed
|
50 meters/minute
|
|
Maximum stretch
|
300%
|
|
Installed power
|
1.5 kW
|
|
Power supply
|
220V, Single phase, 50Hz
|
Film Details |
|
|
Material
|
LLDPE – Stretch Film
|
|
Film width
|
250 to 500 mm
|
|
Film thickness
|
12-35 µ (23µ recommended)
|
|
Core diameter
|
76 mm
|
|
Maximum film diameter
|
250 mm
|
|
Max. weight of film roll
|
15 kgs
|
